V-STEEL PARTITION SYSYTEM

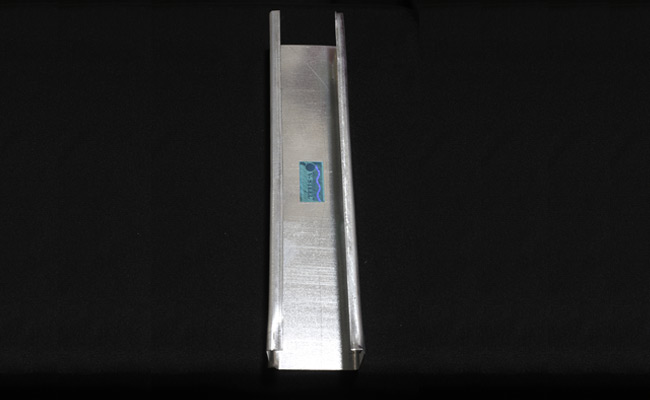

STUD

Studs (0.5mm Thick having one Flange of 34mm and another flange of 36mm ) Made from G. I steel with galvanized zinc coating of 120 microns.

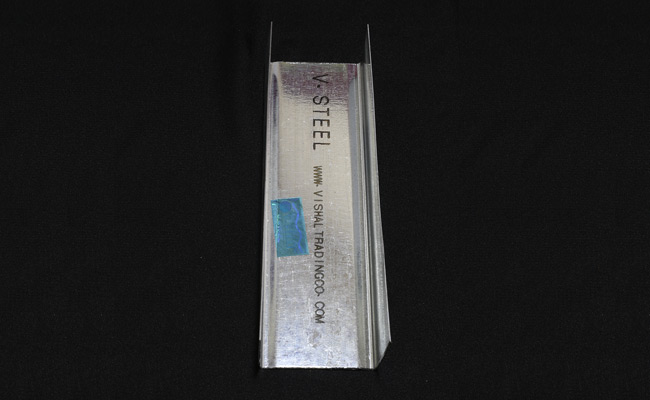

FLOOR AND CEILING CHANNEL

Floor and ceiling channel(0.55 mm thick have equal flanges of 32 mm). Made From G. I steel with galvanized zinc coating of 120 microns.

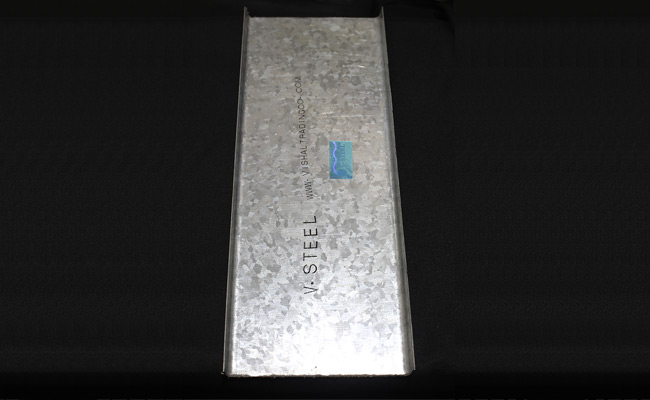

FIXING CHANNEL

Fxing channels of 99 mm width of 99 mm with (0.9 mm thick having two flanges of 9.5 mm each). Made from G. I steel with galvanized zinc coating of 120 microns.

Dry Wall Partition System

STUD -> 0.55MM x 48MM x 36MM x 34MM x 3660MM STUD -> 0.6MM x 63MM x 36MM x 34MM x 3660MM STUD -> 0.55MM x 70MM x 36MM x 34MM x 3660M STUD -> 0.6MM x 84MM x 36MM x 34MM x 3660MM STUD -> 0.6MM x 134MM x 36MM x 34MM x 3660MM

FLOOR CHANNEL -> 0.55MM x 50MM x 32MM x 32MM x 3660MM FLOOR CHANNEL -> 0.6MM x 65MM x 32MM x 32MM x 3660MM FLOOR CHANNEL -> 0.55MM x 72MM x 32MM x 32MM x 3660MM FLOOR CHANNEL -> 0. 6MM x 136MM x 32MM x 32MM x 3660MM FLOOR CHANNEL -> 0. 6MM x 86MM x 32MM x 32MM x 3660MM

FIXING CHANNEL -> 0. 90MM x 99MM x 9.5MM x 9.5MM x 3660MM
