V-STEEL CEILING SYSYTEM

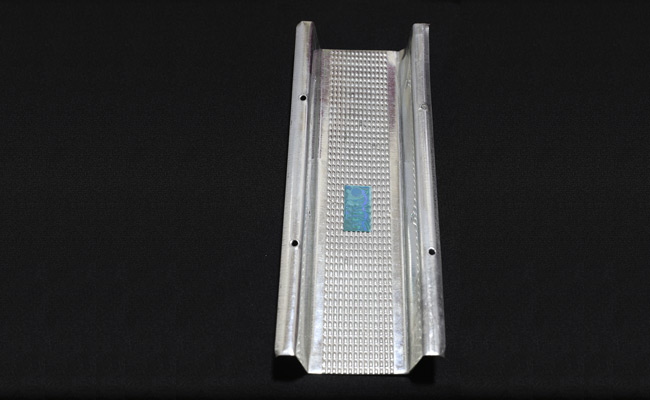

CEILING SECTION

CEILING SECTION

Ceiling section of 0.55 mm thickness having knurled web of 47 mm and two flanges of 26 mm each with lips of 10.5 mm. Made from G. I steel with galvanized zinc coating of 120 microns.

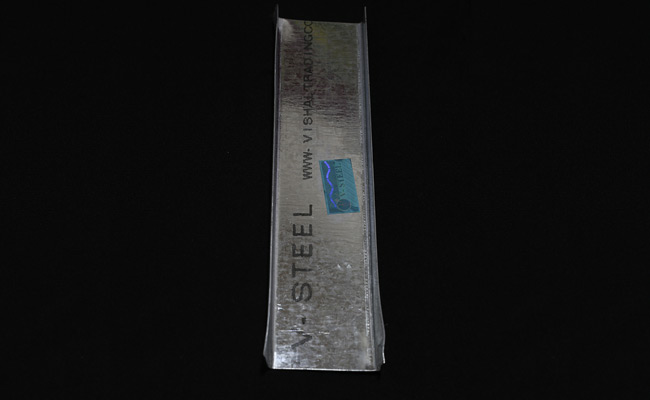

INTERMEDIATE

INTERMEDIATE

Intermediate channels of size 45 mm (0.9 mm thick with two flange of 15 mm each) steel with galvanized zinc coating of 120 microns/

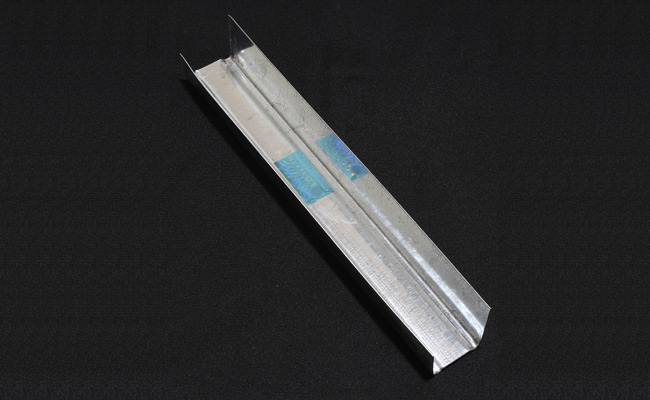

PERIMETER

PERIMETER

Perimeter channel of size 0.55 mm thick (having one flange of 28 mm and a web of 30 mm). Made from G. I steel with galvanized zinc coating of 120 microns.

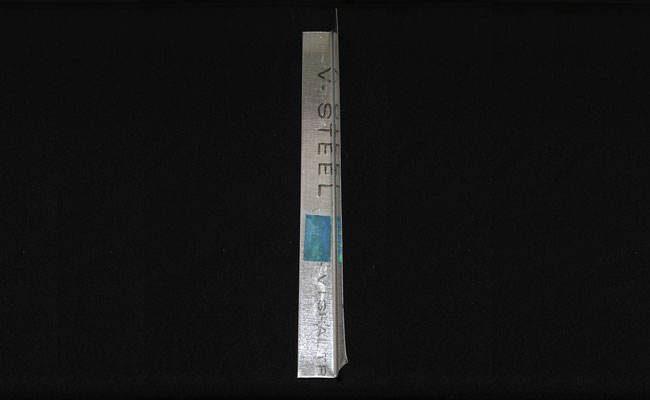

CELING ANGLE

CEILING ANGLE

Ceiling angle of width 25 mm X 10 mm X 0.5mm thick. Made from G. I steel with galvanized zinc coating of 120 microns.

Specification chart of V-steel Ceiling System

CEILING SECTION -> 0.55MM x 0.51MM x 26MM x 10.5MM x 3660MM PERIMETER CHANNEL -> 0.55MM x 20MM x 28MM x 30MM x 3660MM INTERMEDIATE -> 0.90MM x 45MM x 15MM x 15MM x 3660MM CEILING ANGLE -> 0.55MM x 10MM x 25MM x 3660MM CEILING ANGLE -> 0.55MM x 25MM x 25MM x 3660MM

ESTIMATION BASE: FOR 100 SQ.MT.

Ceiling Angle Perimeter channel Ceiling Section Intermediate Channel Fastner
64 Rmt 40 Rmt 230 Rmt 84 Rmt 64 Nos.
